1.195,00 €1.349,00 € (-11%)

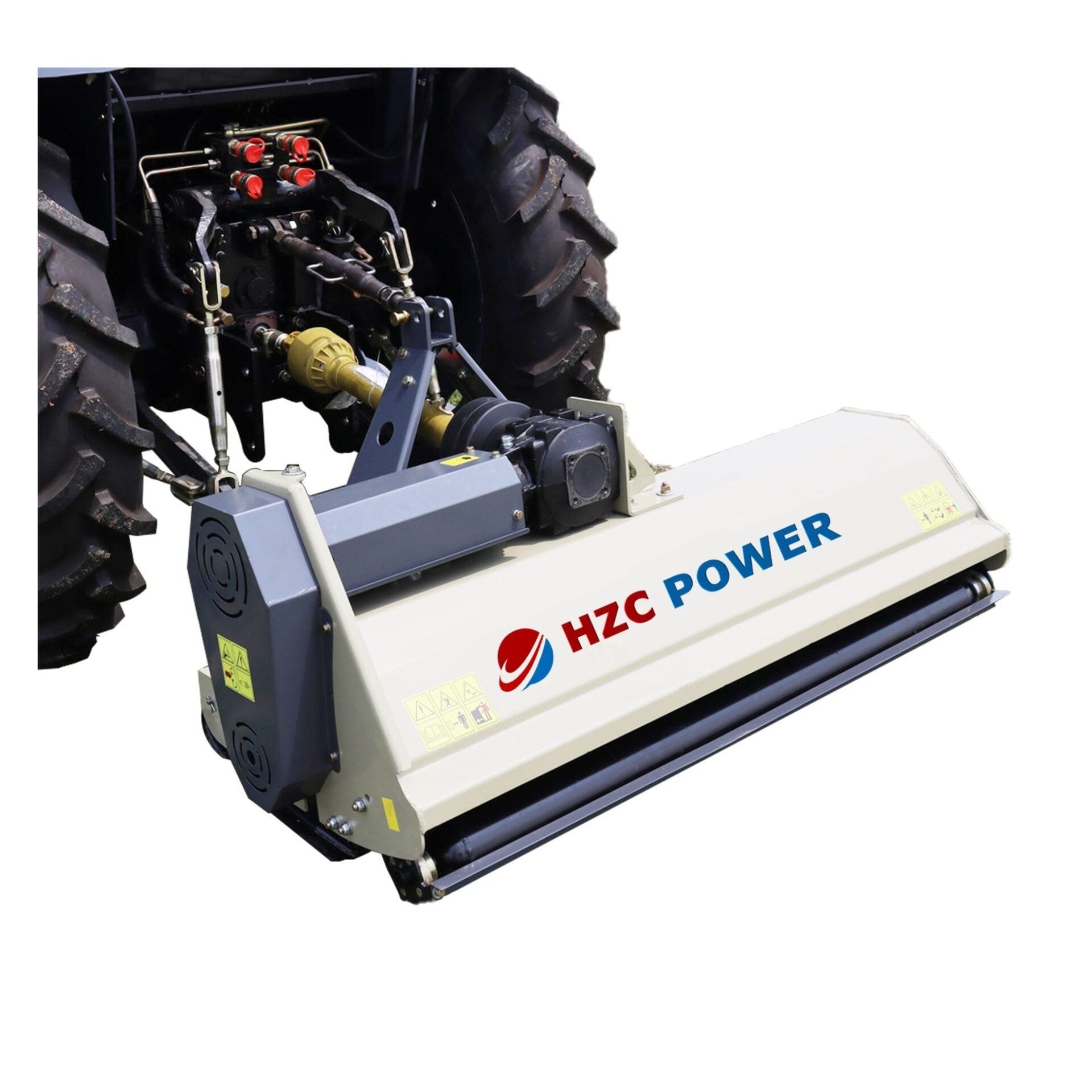

HZC Power EL85 tractor flail mower with nominal 850 mm working width, 540 rpm PTO, 24 hammers, Category I three-point linkage and adjustable cutting height.
Confirm availability, transport and terms before placing your order.
HZC Power EL85 tractor flail mower with nominal 850 mm working width; the manual lists 829 mm cutting width. Published common data include 540 rpm PTO, three-belt transmission, 24 hammers, Category I three-point linkage, cutting height adjustable up to 60 mm and 150 kg assembled weight. Recommended tractor power differs between documents and should be confirmed for the intended tractor.
| Weight | 150 kg |
|---|---|
| Dimensions | 97 × 62 × 76 cm |
| Modelo | EL85 |
| Anchura de trabajo / corte | 850 mm |
| Toma de fuerza | Incluida |
| Velocidad TDF | 540 rpm |
| Transmisión | 3 correas trapezoidales |
| Enganche | Tres puntos Cat. I |
| Potencia recomendada del tractor | 12–20 HP |
| Número de martillos | 24 |
| Tipo de cuchillas | Martillos / cuchillas en Y |
| Peso por martillo | 0,32 kg |
| Diámetro del eje de martillos | 76 mm |
| Diámetro del rodillo trasero | 102 mm |
| Altura máxima de corte | 60 mm |
| Rotor | Doble espiral |
| Peso de la máquina | 150 kg |
| Dimensiones montada | 970 × 620 × 760 mm |
| Peso con embalaje | 172 kg |
| Dimensiones del embalaje | 980 × 750 × 580 mm |
¿Te interesa esta máquina?
