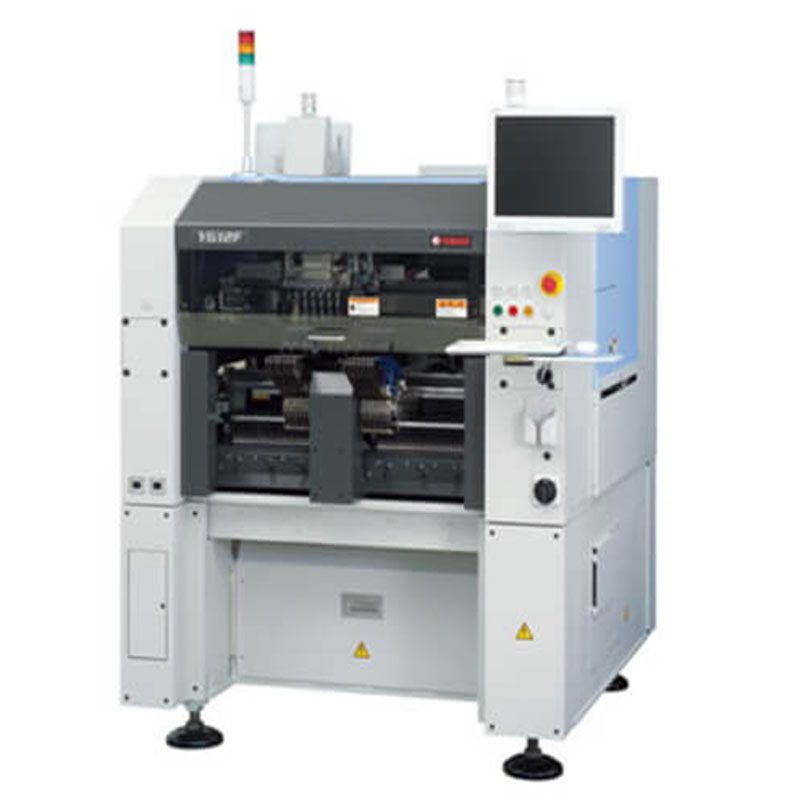

Máquina Pick and Place YAMAHA YG12F | Colocadora SMT para PCB

PCB Size:

Standard Mode: 50 × 50 mm – 510 × 460 mm

ATS15 / MT Mode: 50 × 50 mm – 360 × 460 mm

Placement Speed: Up to 20,000 CPH

Placement Accuracy: ±0.05 mm (3σ)

Component Size Range: 0402 – 32 × 32 mm (max height 6.5 mm)

Feeder Capacity:

Standard Mode: Up to 48 × 8 mm feeders

Extended Mode: Up to 107 × 8 mm feeders

Power Requirement: Three-phase AC 200/208/220/240/380/400/416 V ±10%, 50/60 Hz

Air Pressure Requirement: 0.55 MPa

Machine Dimensions:

Main unit only: 1,254 × 1,440 × 1,445 mm

With ATS15 / MT: 1,254 × 1,755 × 1,445 mm

Machine Weight:

Main unit only: Approx. 1,250 kg

With ATS15 / MT: Approx. 1,370 kg
