Flexible spill containment berm for trucks and vehicle work areas

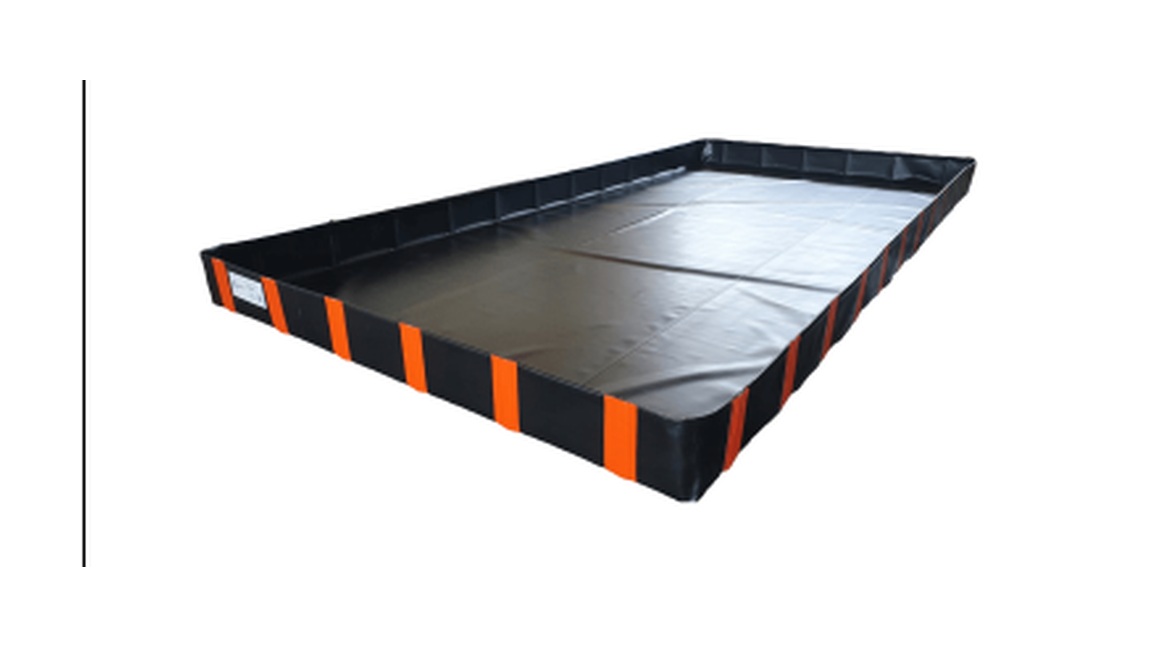

The EXFLO Plus is a truck spill containment berm for collecting liquid spills beneath vehicles during loading, unloading, maintenance and spill-response operations.
Portable secondary containment matched to the vehicle
This flexible containment system creates a defined collection area rather than replacing a primary storage tank. Before selecting a vehicle containment berm, check the vehicle footprint, the working space and where a potential leak could occur. The dimensions must accommodate the intended operation, not only the distance between the wheels.
Published EXFLO Plus specifications
- Published containment capacity: 22,575 litres.
- Dimensions: 18.40 m long × 3.69 m wide × 0.35 m high.
- Material: technical polyester fabric coated with EVA.
- Fabric mass stated by EXFLO: 1,365 g/m².
The existing capacity calculation uses approximately 95% of the wall height. The remaining allowance is not extra rated storage capacity. Rainwater, equipment inside the berm and the required freeboard must be considered when assessing the containment available for a particular installation.
Confirm liquid compatibility and installation requirements
Give Makitor the identity and concentration of the liquid, the expected temperature and the maximum volume to be retained. Compatibility with an EVA-coated fabric must be confirmed for the specific liquid and conditions; the berm is not described as suitable for every chemical. Prepare the supporting surface and use any protection required by the manufacturer.
Clarify the access arrangement, wall supports, any drainage equipment and protection accessories in the quotation. Do not assume that optional components or a particular drive-over arrangement are included.
Request a quotation for the EXFLO Plus flexible spill berm with the delivery location and vehicle dimensions. Makitor will confirm the supplied configuration, availability, transport, unloading and installation conditions for the order.
