Descriptión
Professional 7-function combination woodworking machine with height-adjustable Ø 250 mm circular saw, sliding table, mortiser, vertical spindle moulder and 260 mm planer. Cast-iron tables and two independent motors with SKF bearings.
2.590,00 €
7-function combination woodworking machine with Ø 250 mm saw, sliding table, mortiser, vertical spindle moulder and 260 mm planer.
Confirm availability, transport and terms before placing your order.
Professional 7-function combination woodworking machine with height-adjustable Ø 250 mm circular saw, sliding table, mortiser, vertical spindle moulder and 260 mm planer. Cast-iron tables and two independent motors with SKF bearings.
| Marca | Damatomacchine |
|---|---|
| Modelo | Discovery Súper |
| Código de producto | DMCI004 |
| EAN / GTIN | 8056095440247 |
| Funciones | 7 funciones para trabajar la madera |
| Dimensiones con carro y mortajadora | 1100 × 1500 × 850 mm |
| Dimensiones sin carro y mortajadora | 1100 × 600 × 850 mm |
| Peso neto publicado | IT/EN: 280 kg; FR: 300 kg |
| Sierra circular | Ø250 mm, regulable en altura |
| Velocidad de la sierra | 5500 rpm |
| Altura máxima de corte | 80 mm |
| Distancia máxima hoja-guía paralela | 400 mm |
| Carro de escuadrado | 300 × 500 mm, soporte tipo bandera |
| Carrera del carro | 1200 mm |
| Motor sierra / cepilladora | 2 HP / 1500 W, monofásico 220 V |
| Motor tupí | 1,7 HP / 1200 W, monofásico 220 V |

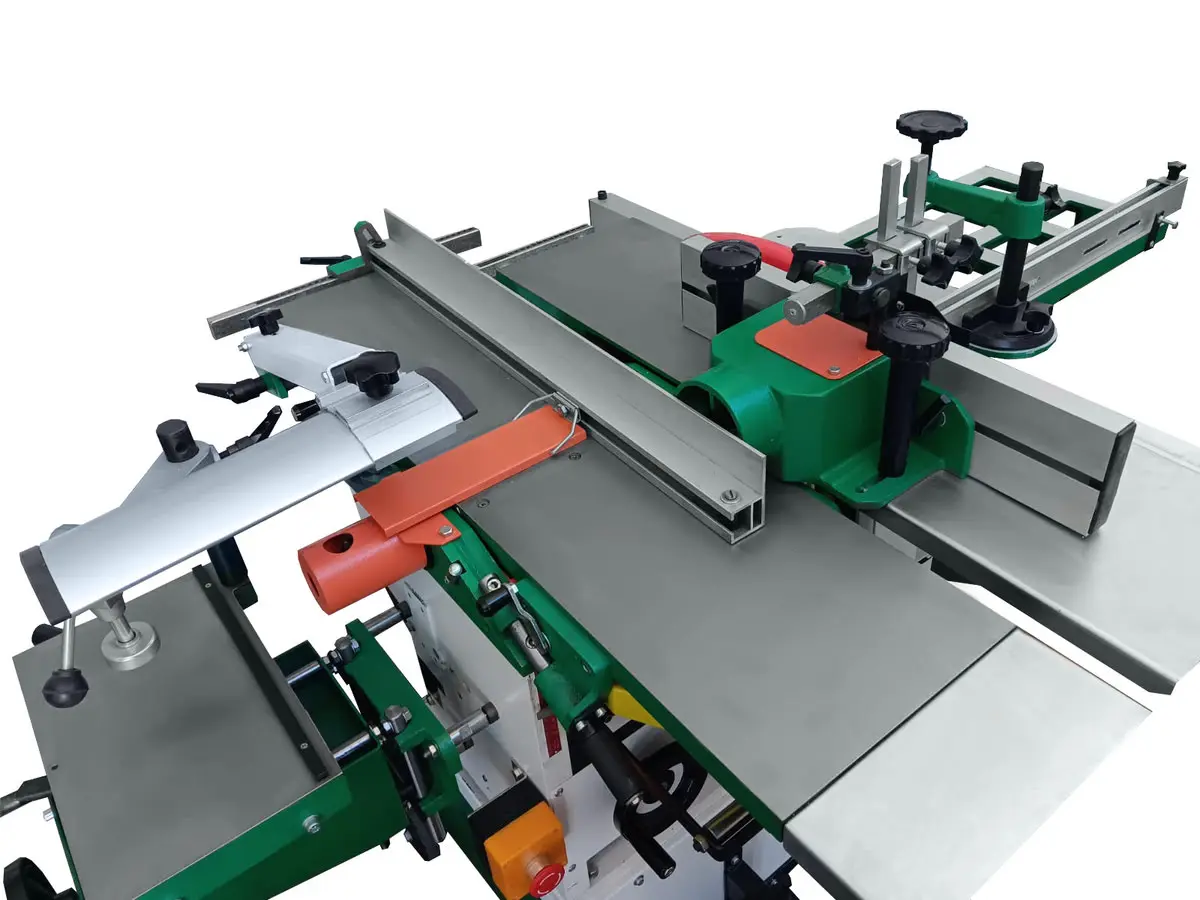

| Tupí | Vertical, eje Ø30 mm |
| Altura máxima del eje tupí | 80 mm |
| Velocidad del tupí | 7000 rpm |
| Diámetro máximo herramienta en capota tupí | 130 mm |
| Diámetro máximo bajo mesa | 80 mm |
| Mortajadora / escopleadora | 5500 rpm; portabrocas hasta 16 mm |

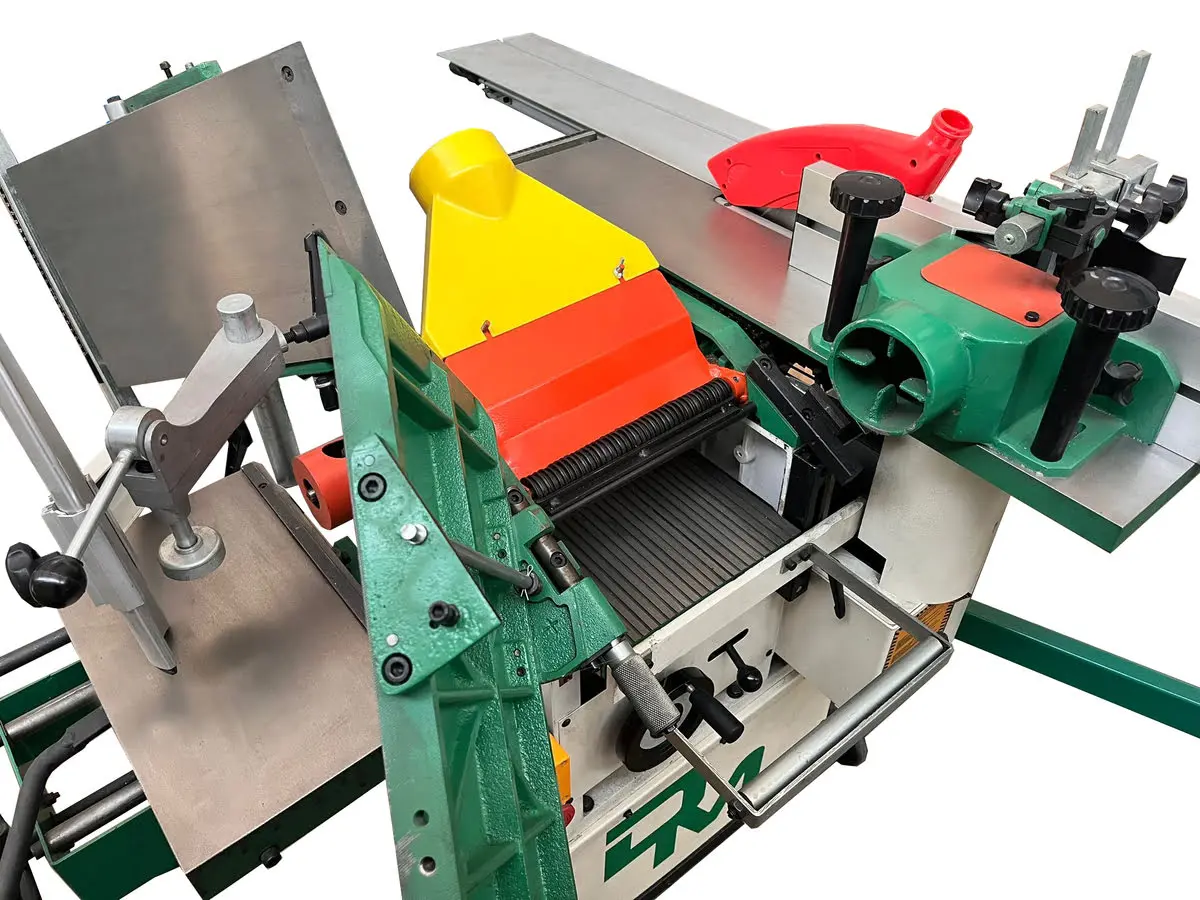

| Cepilladora / regruesadora | 3 cuchillas; eje de 260 mm |
| Velocidad de arrastre | 6,5 m/min |
| Ancho máximo de cepillado | 260 mm |
| Altura máxima de regruesado | 120 mm |

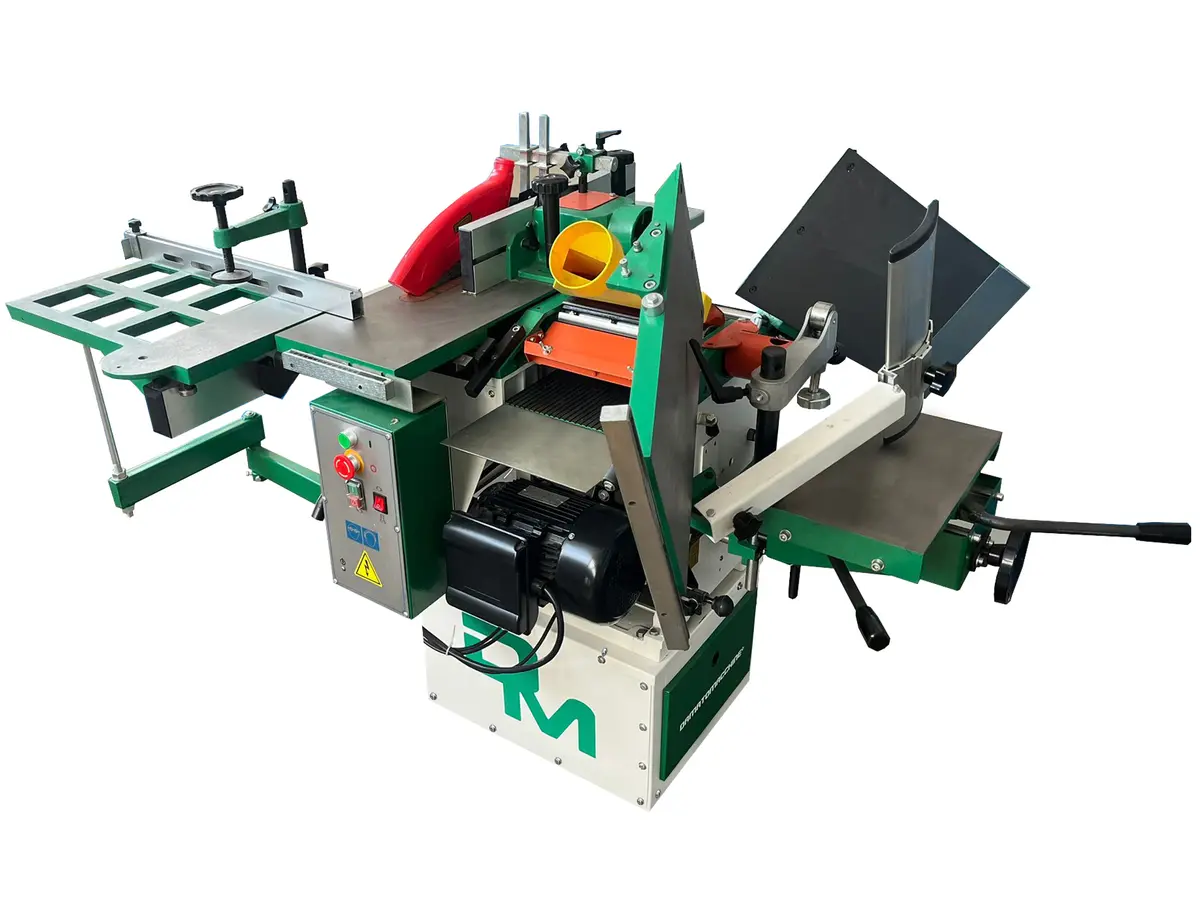

| Mesas | Hierro fundido, abatibles |
| Rodamientos | SKF según fabricante |
