Descriptión

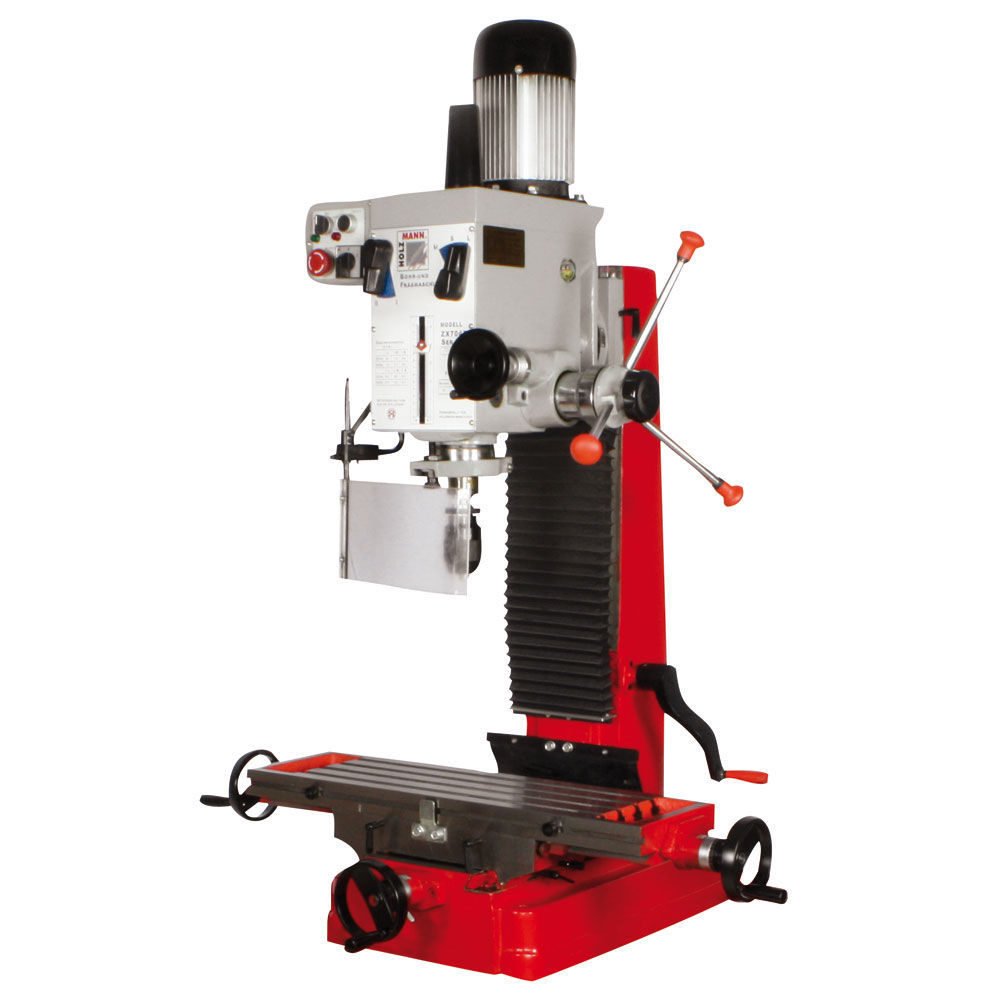

HOLZMANN ZX7045 400V is a drilling and milling machine for metalworking with a height-adjustable head that swivels through 360 degrees. Verified specifications: 1100 W S1 motor; 1500 W S6 rating; 400 V supply; 730 x 210 mm table with 14 mm T-slots; reach 245 mm; maximum drilling capacity Ø32 mm in steel with tapping up to M16; maximum drilling capacity Ø45 mm in cast iron with tapping up to M20; MT4 spindle taper; 6 speeds from 95 to 1600 rpm; spindle travel 120 mm; maximum spindle-to-table distance 465 mm; X travel 490 mm; Y travel 205 mm; maximum cutting diameter 80 mm. Model ZX7045_400V. Verified EAN 9120039901695. Brand HOLZMANN.
