Descriptión

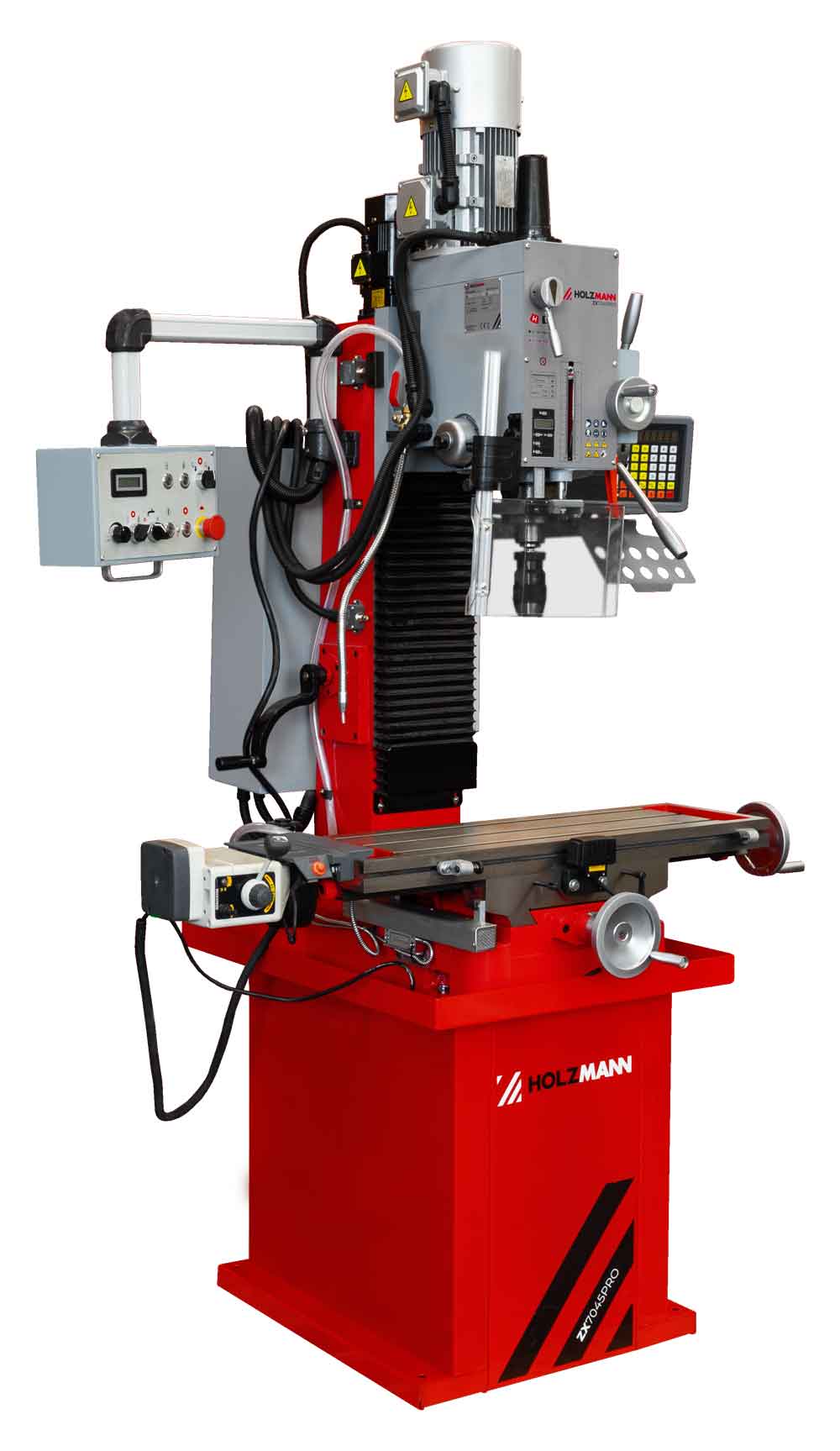

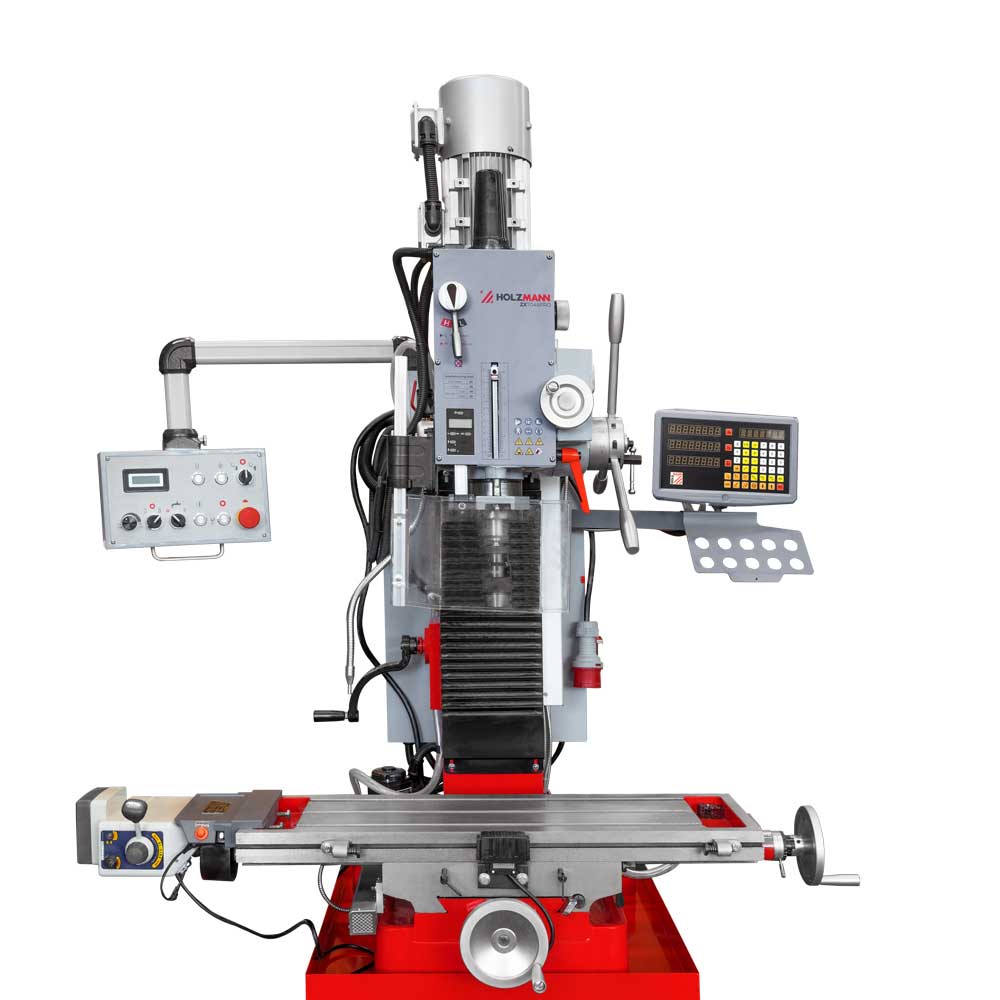

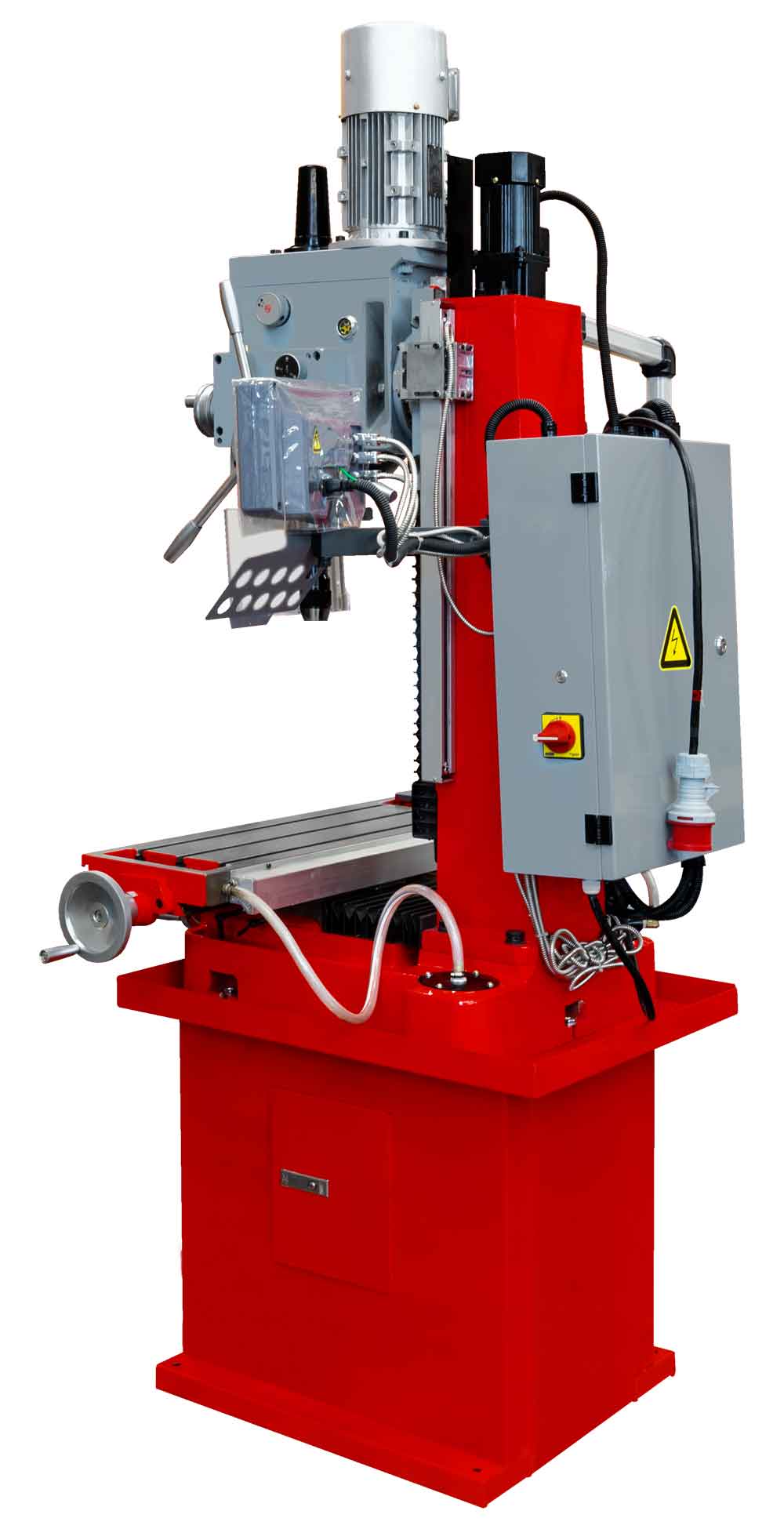

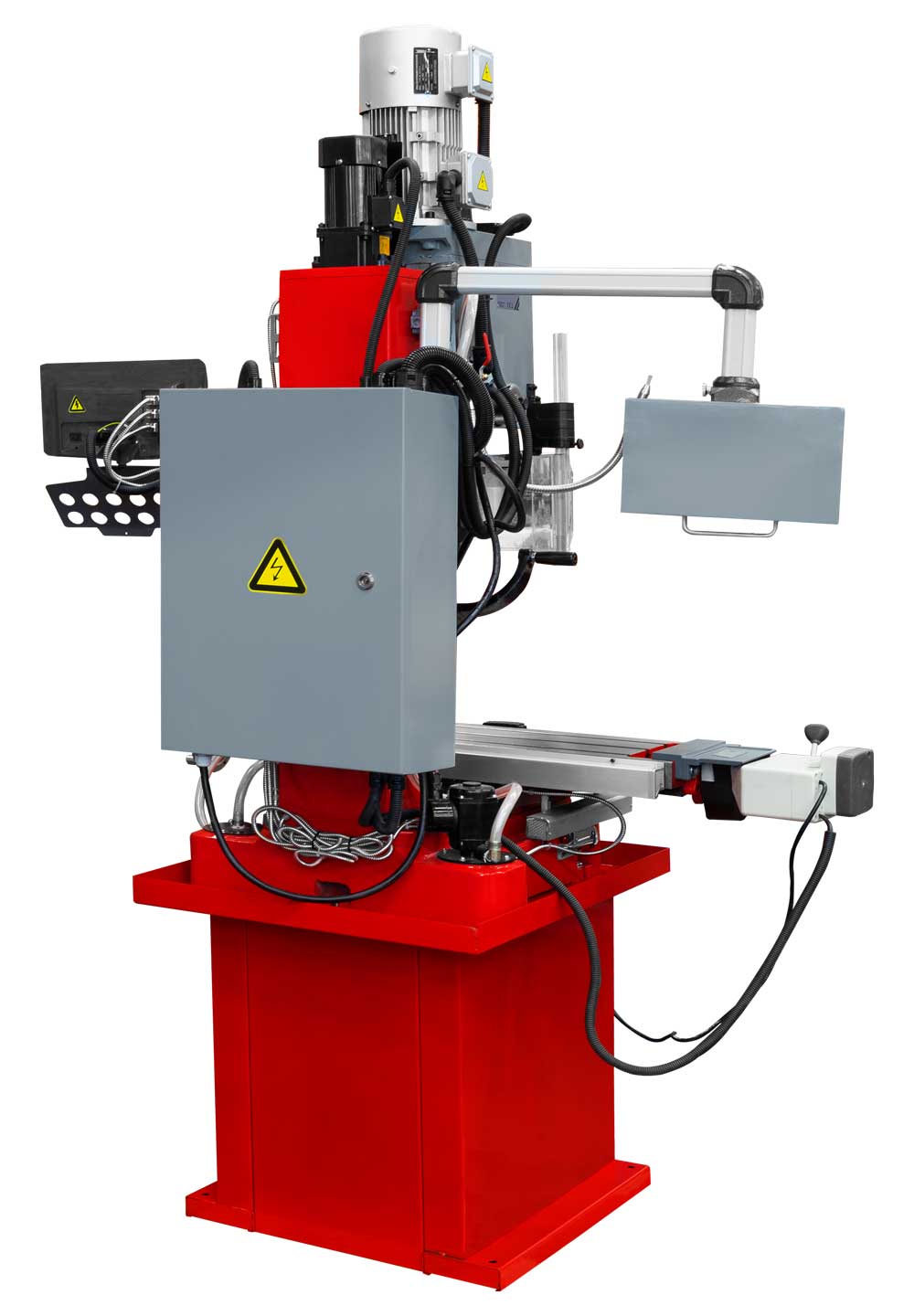

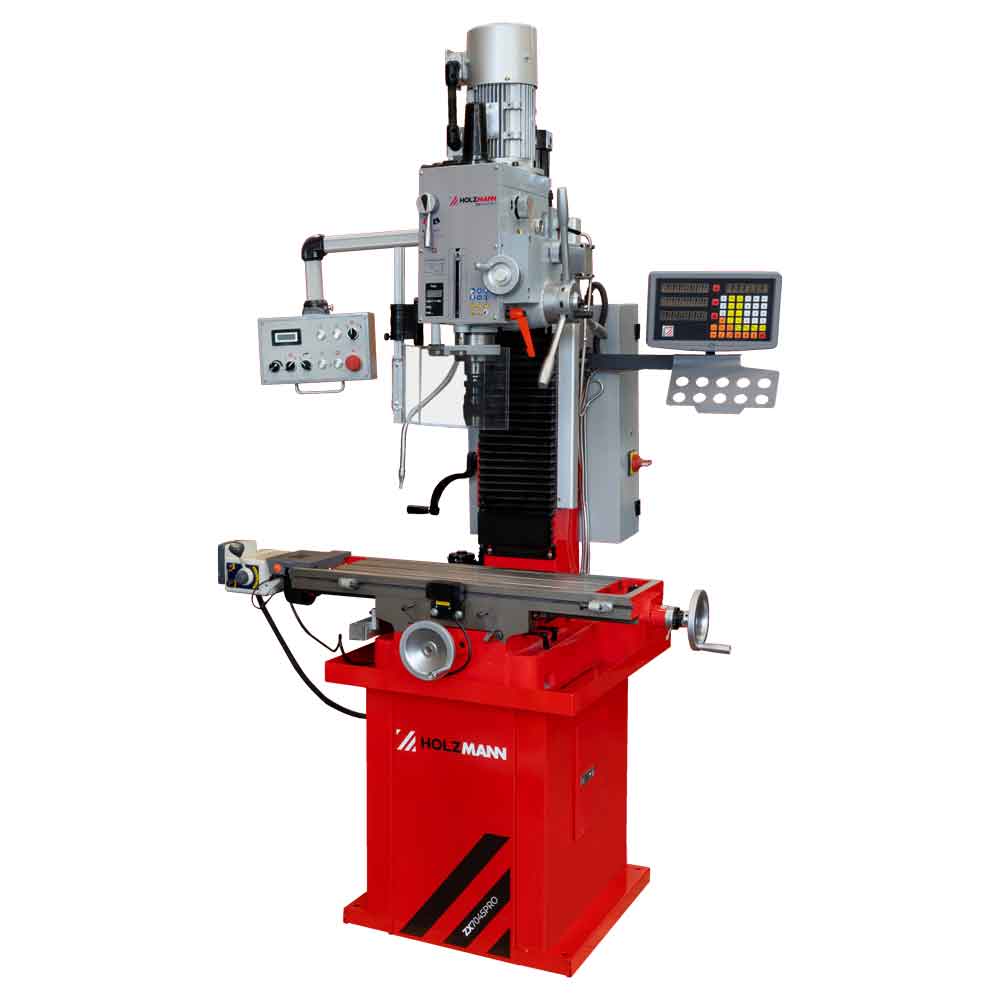

HOLZMANN ZX7045PRO 400V is a professional drilling and milling machine for metalworking with automatic feeds. Verified specifications: 1500 W S1 motor; 400 V / 50 Hz supply; maximum drilling capacity Ø32 mm in steel and Ø45 mm in cast iron; maximum tapping M20; MT4 spindle taper; spindle speed ranges 75 to 438 rpm and 438 to 2500 rpm; spindle travel 110 mm; maximum spindle-to-table distance 445 mm; X travel 560 mm manual and 480 mm automatic; Y travel 190 mm; Z travel 420 mm manual and 350 mm automatic; maximum cutter diameter Ø28 mm. Automatic feed motor is 90 W. Model ZX7045PRO_400V. Verified EAN 9120132140083. Brand HOLZMANN.
