Descriptión

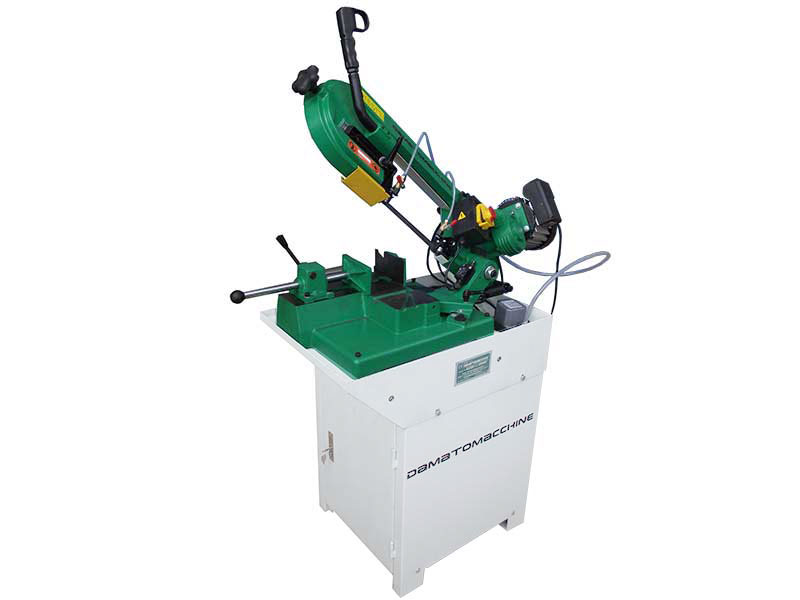

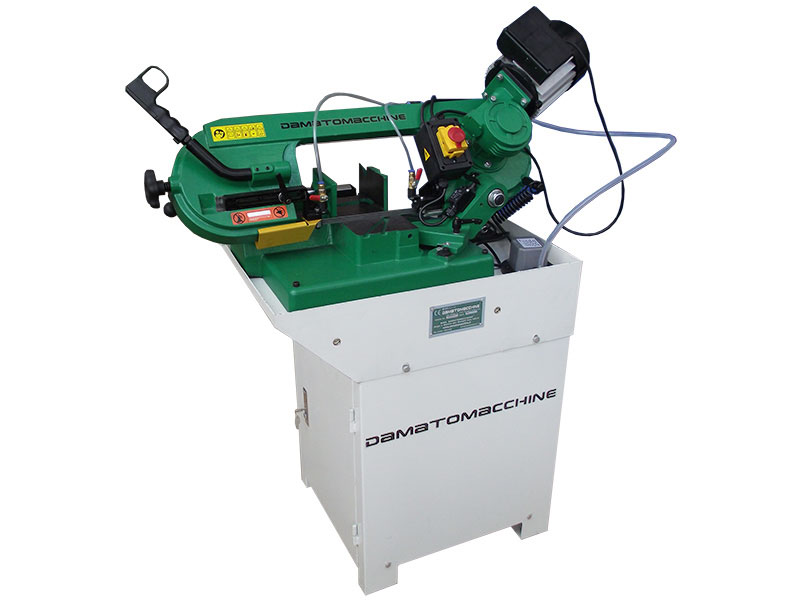

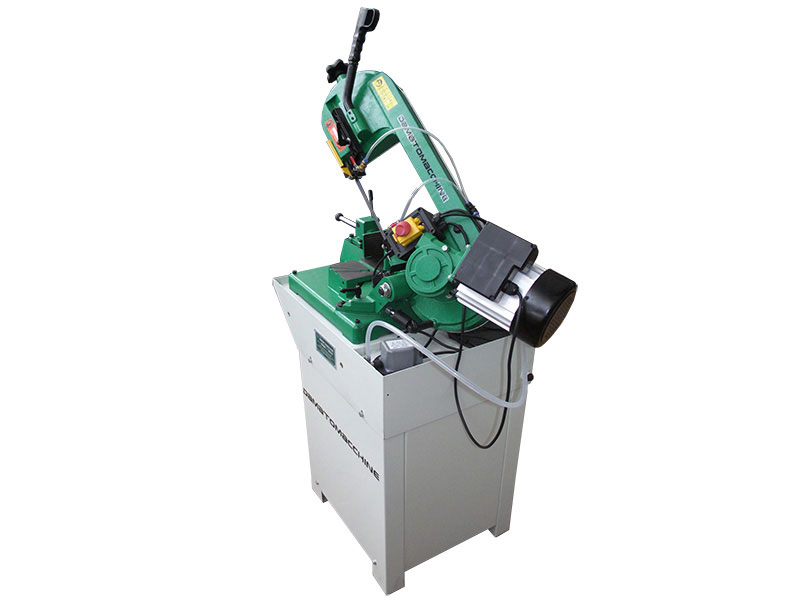

Damatomacchine GEO 4014 metal bandsaw
The GEO 4014 is a compact metal-cutting bandsaw with a cast-iron frame, base, manually raised and lowered saw bow, and coolant pump.
Cutting capacities
- At 0°: round stock up to 150 mm; square stock up to 150 × 150 mm.
- At 45°: section up to 120 × 150 mm.
- At 60°: round stock up to 50 mm; section up to 50 × 56 mm.
- Angular range: 0–60°.
- One blade speed and a coolant pump.
Machine dimensions
Overall dimensions: 1,000 × 540 × 1,440 mm. Cutting-plane height: 890 mm. Net weight including the base: 81 kg. These are machine dimensions, not packed shipping dimensions.
Motor and blade: confirmation required
The manufacturer’s published information is inconsistent: the summary states 550 W, while the technical table states 750 W. The table lists a 1,640 mm blade, while the listed GEO 4014 replacement blade is 1,735 mm. Confirm the motor rating and correct blade length for the supplied version before ordering.
Manufacturer reference: DMSM004. EAN: 8056095440698. Contact Makitor to confirm the configuration, availability and transport.
