Descriptión

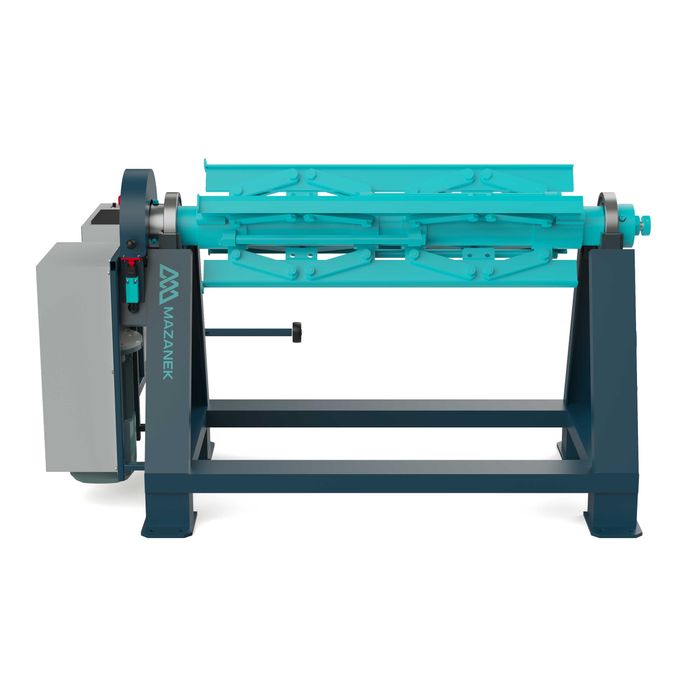

MAZANEK RM 1500/5t motorized coil decoiler
The MAZANEK RM 1500/5t is a motor-driven decoiler for is also searched as a motorized uncoiler, coil decoiler, sheet metal uncoiler or powered coil holder.
Coils up to 5 tonnes
The manufacturer specifies a maximum load of 5,000 kg, an outer coil diameter of approximately 1,000–1,300 mm and a compatible inner diameter of 340–640 mm.
Verified technical data
- Model: MAZANEK RM 1500/5t
- Maximum load: 5,000 kg
- Nominal width: 1,500 mm
- Coil inner diameter: 340–640 mm
- Coil outer diameter: 1,000–1,300 mm
- Electric motor: 2.2 kW
- Dimensions: 2300 × 1150 × 1000 mm
- Weight: 465 kg
- Drive: motorized
For sheet-processing lines
The RM series is the mechanized version of the RR manual decoilers and is designed for integration with sheet-processing equipment such as cross-cutting and slitting lines. A control arm regulates the uncoiling process.
Purchase and delivery
New machine made in Poland. Manufacturer warranty: 12 months. Spain–Europe delivery: request a quotation.
