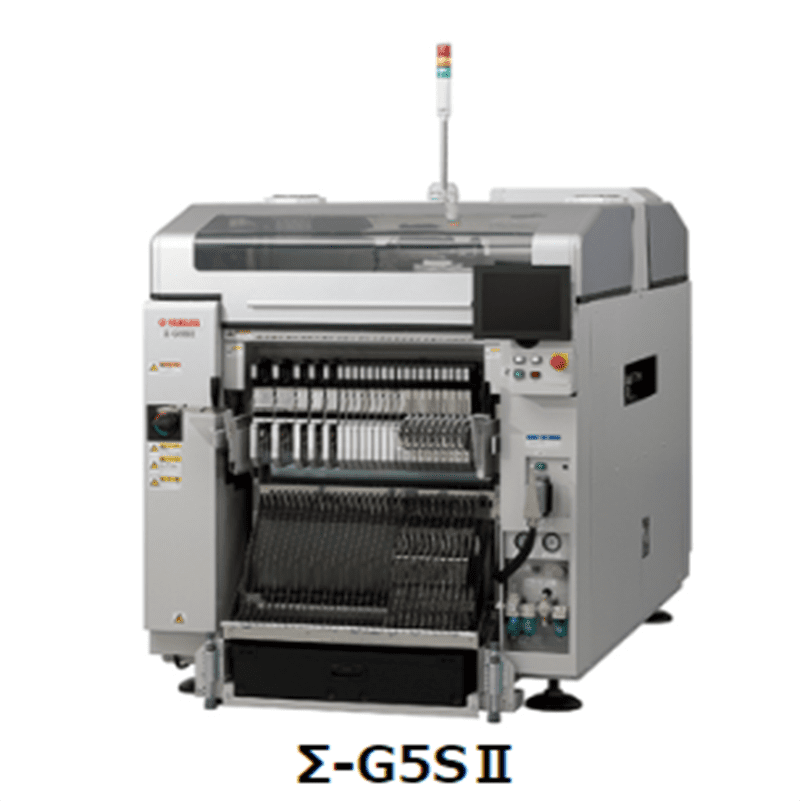

YAMAHA G5SII SMT Pick-and-Place Machine | High-Speed Precision Placement

Placement Speed: High-Speed Multi-Function Head ×2: 90,000 CPH (single-track/dual-track)

Placement Accuracy: High-Speed Multi-Function Head: 0201/03015: ±25μm, 0402: ±36μm, 0603: ±40μm

Flexible Multi-Function Head Accuracy: ±15μm

Supported Component Sizes: High-Speed Multi-Function Head: 0201 to L44×W44×H12.7mm; Flexible Multi-Function Head: 1005 to L72×W72×H25.4mm

Supported PCB Sizes: Single-track: L610×W510 mm to L50×W50 mm (optional: L1,200×W510 mm); Dual-track: L610×W250 mm to L50×W84 mm (dual feeder)

Number of Component Types: Up to 120 types (equivalent to 8 mm tape width)

Power Requirements: Three-phase AC200V ±10%, 50/60Hz

Air Supply Requirements: 0.45 to 0.69 MPa (4.6 to 7 kgf/cm²)

Machine Dimensions: L1,280 × W2,240 × H1,450 mm (excluding protrusions)

Weight: Approximately 1,800 kg
