Descriptión

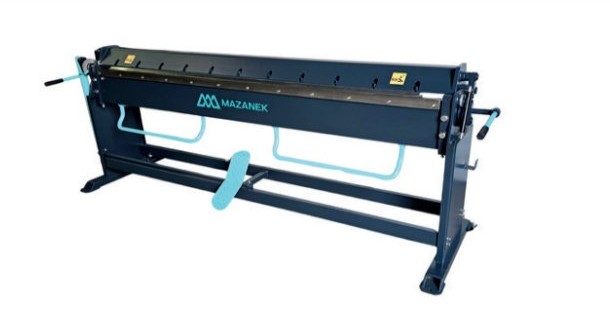

MAZANEK ZGR 1500/1 manual sheet metal bending brake
The MAZANEK ZGR 1500/1 is a manual sheet metal folder for workshops, is also searched as a sheet metal brake, folding brake, manual metal bender or sheet metal folding machine.
Professional manual folding
MAZANEK specifies capacity up to 1.0 mm black steel sheet at Rm < 400 MPa, 80° maximum opening and 140° bending angle.
Verified specifications
- Model: ZGR 1500/1
- Maximum sheet thickness: 1.0 mm at Rm < 400 MPa
- Maximum opening: 80°
- Bending angle: 140°
- Dimensions: 2250 × 740 × 1050 mm
- Weight: 350 kg
- Folding beam: 15 mm
Includes angle gauge, gas-spring assistance, eccentric upper-beam clamp, foot support and rear material supports. Optional RNK rotary shear. Freight is not included and is quoted for the destination. Manufacturer warranty: 12 months under its conditions. Supplied to order.
